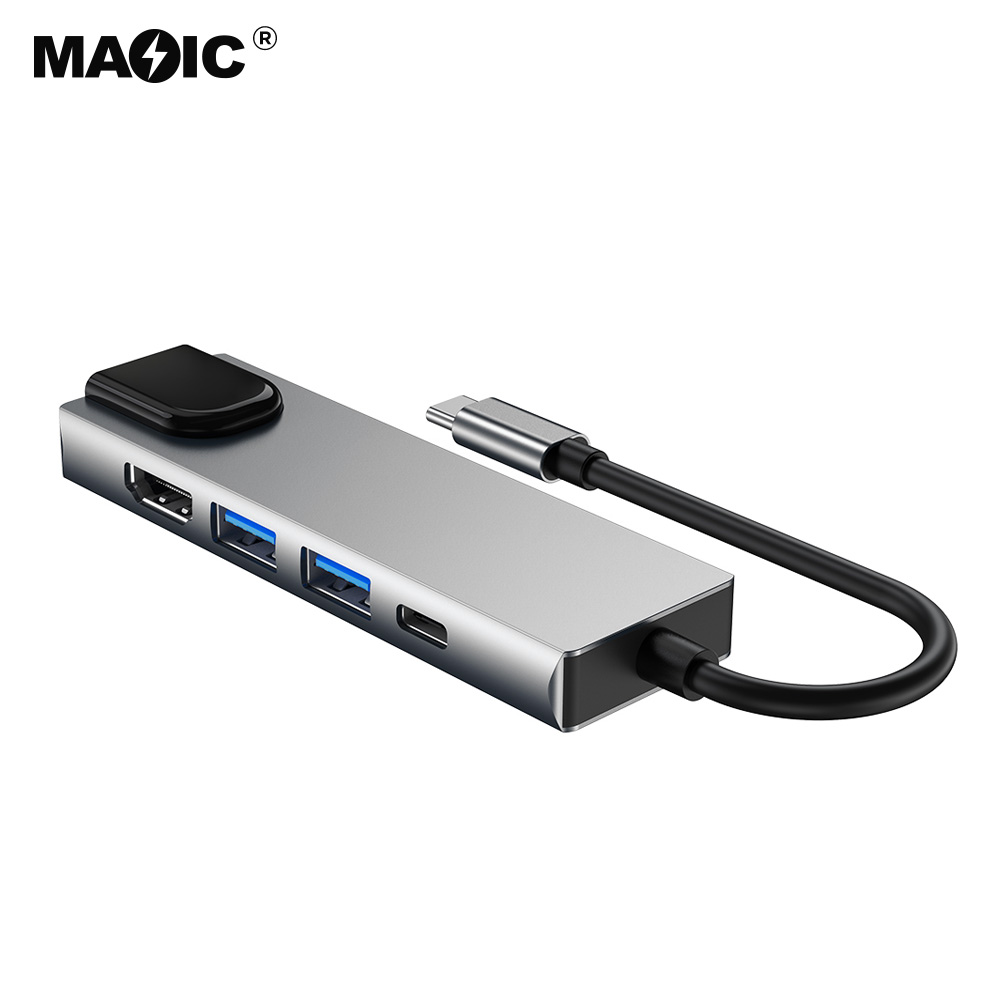

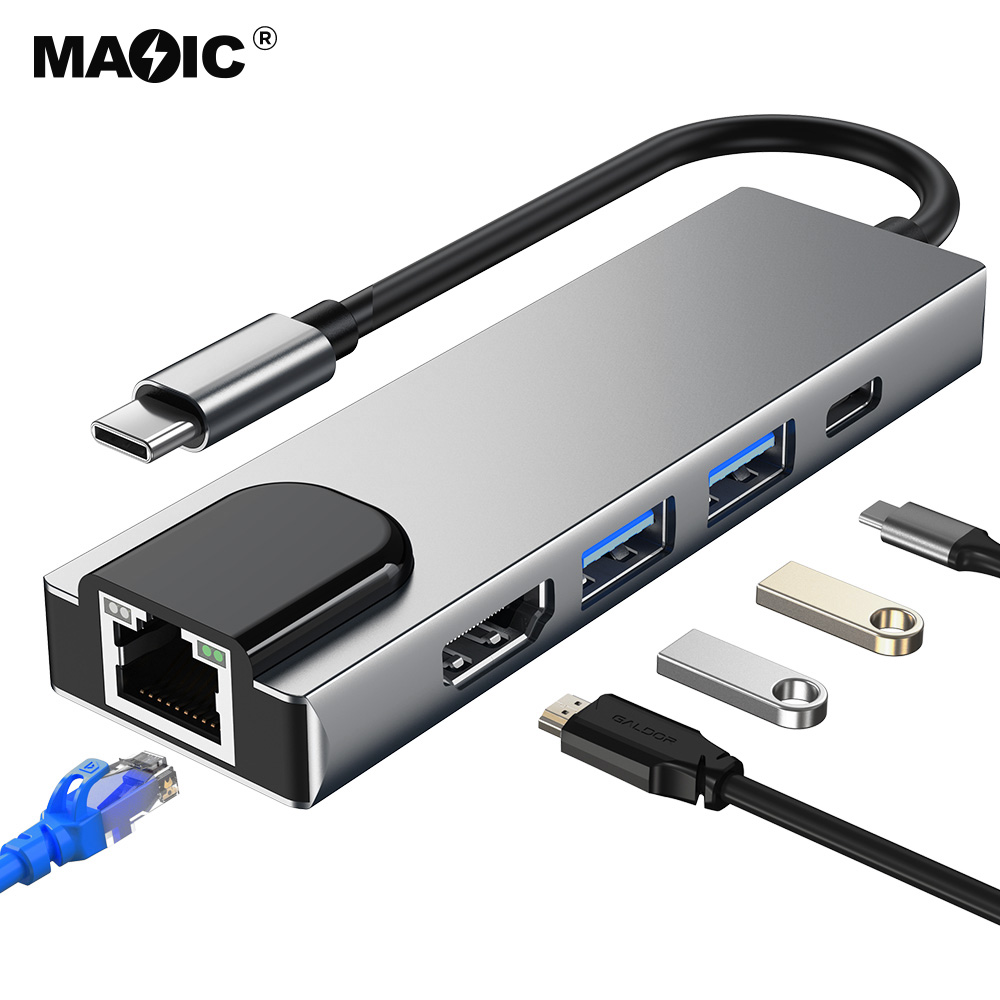

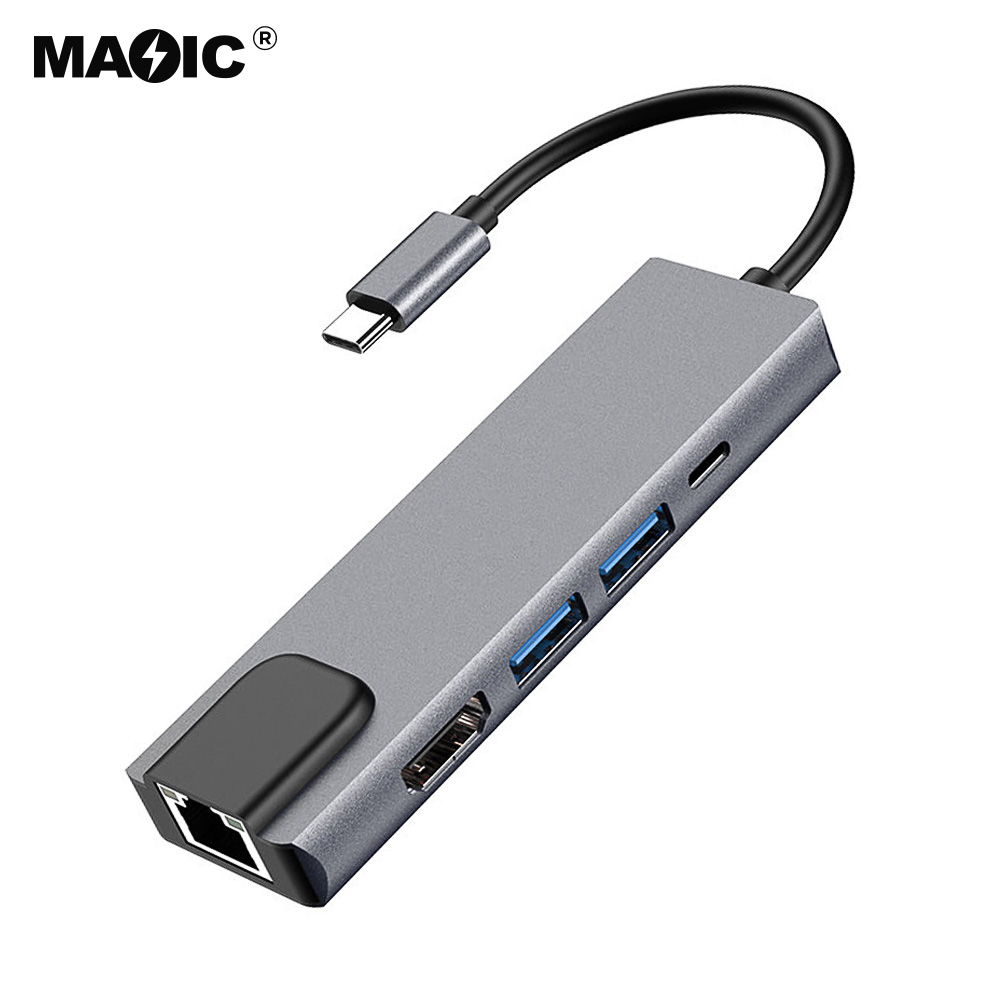

It is a video transmission adapter cable, the input end is a USB-C interface for mobile phones, tablets, laptops, etc. The USB-C interface is small in size, supports upward and downward insertion, data transmission. HDMI output supports up to 3840X2160P/30HZ video Resolution, for high-definition display, LCD TV, etc. (the device itself must have Type c protocol) Features: It adopts the VL101+VL813+PS176+RTL8153 chip.

1. The highest resolution is 3840X2160P/30HZ (requires the support of the display host), and it also supports 1080p/23.98/24/50/59.94/60HZ, 1080i/50/ 59.94 /60HZ, 720p/50/59.94/60HZ, etc.

2. Support HDCP2.2

3. USB3.0A/F supports maximum current 0.9A, supports maximum rate 5Gbps

4. Backwards compatible with USB2.0/1.1

5. Compliant with USB -C interface specification

6. Support SD/TF card data storage function

7. Built-in conversion chip, plug and play

8. Operating temperature: 0~70℃

9. Operating humidity: 10% to 85% RH (non-condensing)

10. Storage temperature: -10~70 ℃

11 Storage humidity: 5% to 90% RH (non-condensing)

12: The network card supports a maximum of 1000M and downwards supports 100M10M
