HDMI Converter
Features:
l No need to drive, light and flexible, plug and play
l Use high-quality scaling technology to handle input resolution
l Support NTSC and PAL standard TV mechanism output
l Support HDMI 1.3 and backward compatible
Specifications:
HDMI input and output resolution……………………………. Maximum support 1.3/60fs
HDMI supports video color format……………………………24bit/dark 30 Bit / 36 bits
HDMI maximum transmission bandwidth………………….300MHz
HDMI maximum transmission speed………………………..10.2 Gbps
Input and output TMDS signals………………………………..0.5~1.5Vp-p(TTL)
Input and output DDC signals…………………………………..5Vp-p(TTL)
RCA analog output (1KHz@0dB)……………………………..1V RMS
Signal to noise ratio @0dB(CC1R/ARM)…………………….≥90dB
Distortion………………………………………… …………………….≤0.1%
Frequency response………………………………………… …….20HZ~20KHz
HDMI input cable length…………………………………………..≤7m AWG26 HDMI standard cable
SCART output cable length………………………………………≤8m AWG26 SCART standard line
Maximum working current…………………………………….. ….600mA
Power Adapter Specifications…………………………………….AC 100V-240V 50/60HZ, DC 5V/1A
Operating temperature………………………………………… ….-10~+55°C
Storage temperature ……………………………………….. …….-20~+60°C
Working humidity………………………………………… …………..10~90% RH (no condensation)
Storage humidity………………………………….. ………………….5~95% RH (no condensation)
Shell size………………………………………… ……………………..88.5*57.5*25 (mm)
weight…………………………………………. …………………………110g
Applications:
1. Connect the DVD/BD HDMI HD output to the HDMI input of the splitter via the HDMI cable.
2. Connect the SCART output of the converter to the SCART input of the TV/display via the SCART line.
3. When the PAL mode needs to be displayed, turn the switch to the left. When the NTSC mode is to be displayed, turn the switch to the right.
4. Finally, connect the DC head of the power adapter to the DC input of the converter, and then plug the adapter into the power socket.Details:

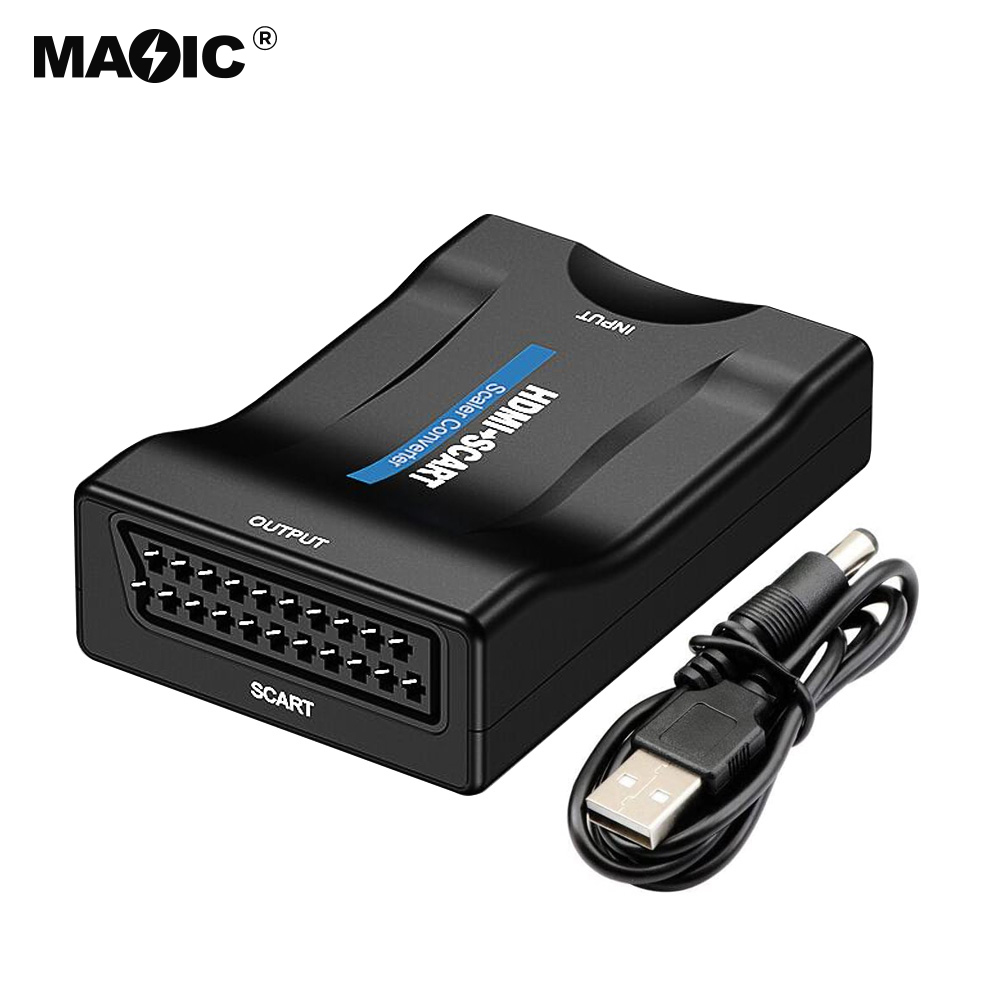

This mini HDMI to SCART converter converts HDMI digital audio and video signals into composite video signals as well as left and right stereo audio signals. At the same time, it supports DVI system signals, helping users to convert high-quality HDMI signals into ordinary CVBS signals (standard resolution 480i, 576i) that can be played on CRT TVs, VHS recorders, DVD recorders, etc., and supports NTSC and PAL TVs. Mechanism output.
