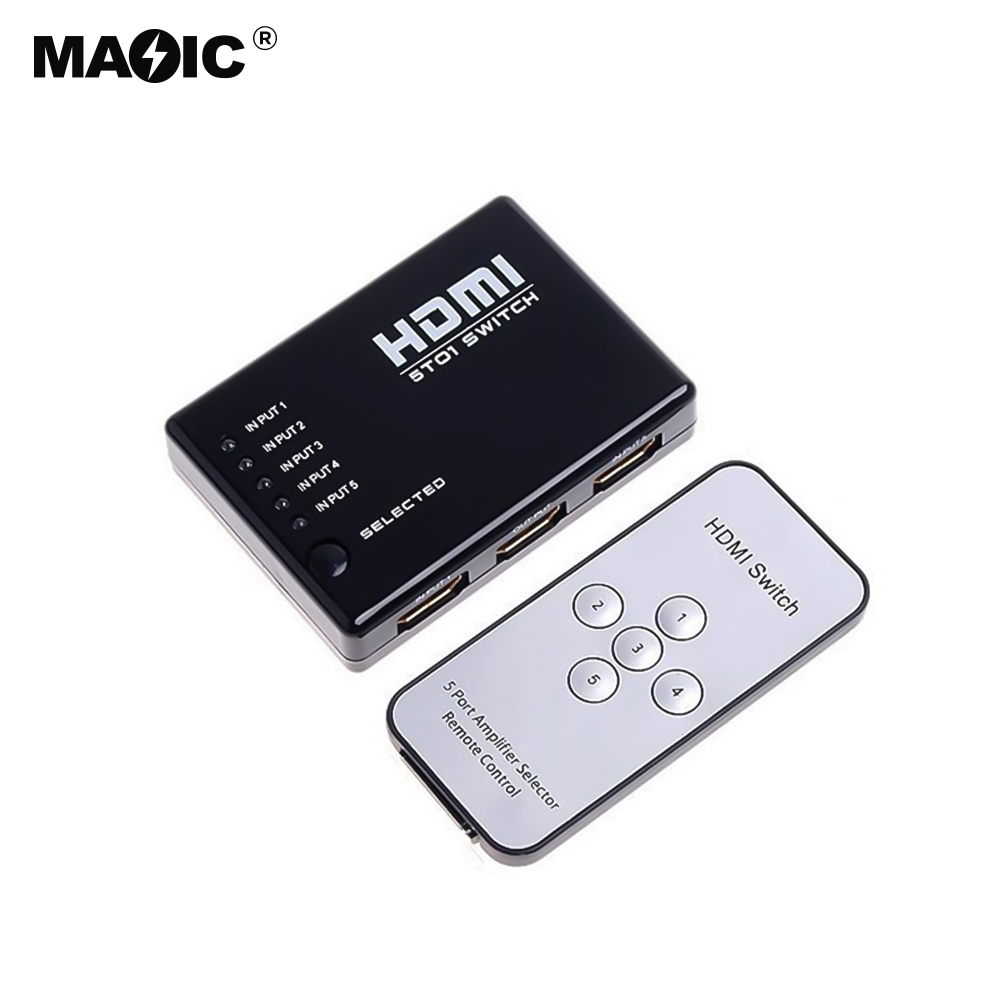

HDMI®-SWITCH-5×1

1080P HDMI Switch 5 In 1 Out HDMI switcher With IR Remote Control

Category:

Model No.: PLS-CAH013

This is a kind of high performance mini HDMI Switcher. It is compatible well for HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc, which has not only key-press-switching function, but also has IR remote control and intelligent function.

Features:

Support HDMI 1.3b.

Full HD 1080P.

Support 12-bit deep color.

High performance up to 2.5Gbps.

IR extender receiver(included).

IR remote control(included).

No power needed(If the input equipment is standard, otherwise power needed).

Multifunction on switching: intelligent or mechanical.

Support uncompressed audio such as LPCM.

Support compressed audio such as DTS Digital, Dolby Digital.

It is compatible well for HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc.

HDCP pass-through.

Specifications:

Input DDC Signal: 5 volts p-p(TTL)

Output Video: HDMI 1.3b

Maximum Single Link Range: 1920 * 1080p

Vertical Frequency Range: 50/60Hz

Video Amplifier Bandwidth: 2.5Gbps/250MHz

Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Operating Temperature: 0℃ to + 70℃

Operating Humidity: 10% to 85% RH

Storage Temperature: -10℃ to + 80℃

Storage Humidity: 5% to 90% RH

Consumption(Max): 5W

Item size: 8 * 5.8 * 1.8cm

Item weight: 90g
