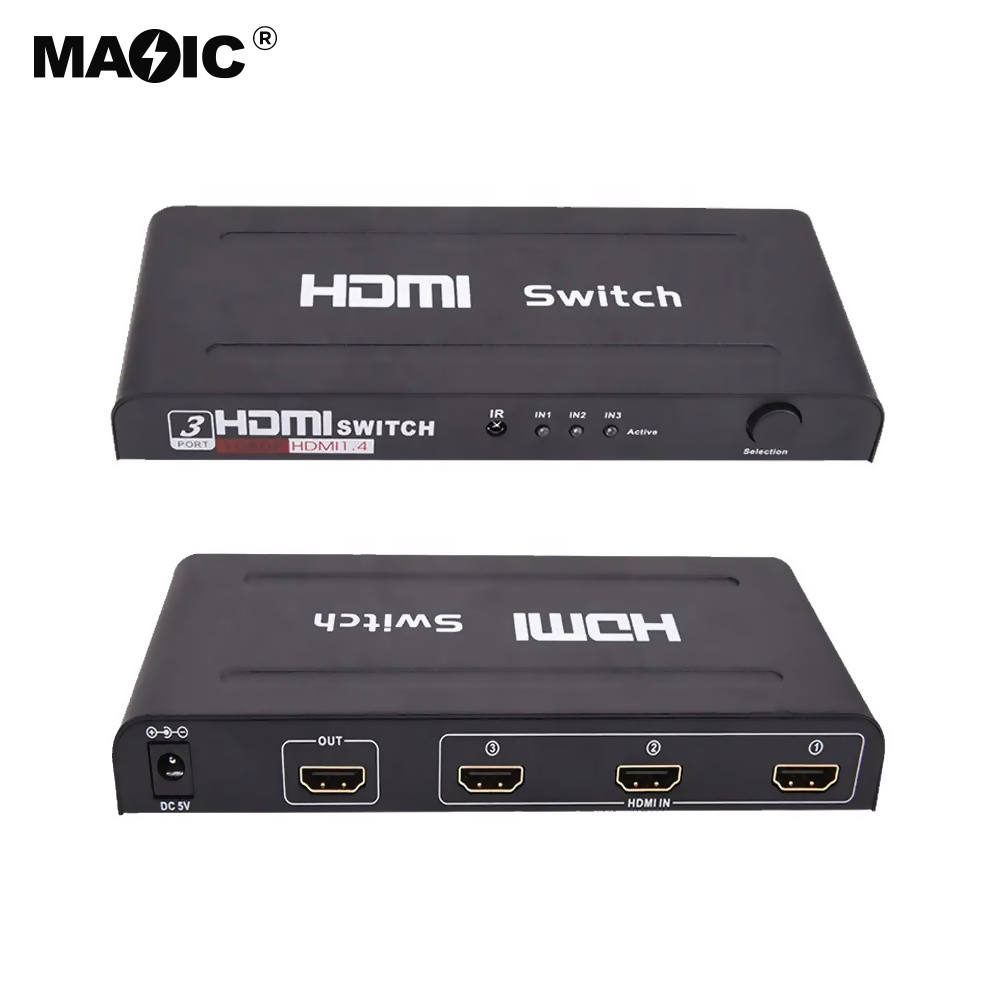

HDMI switch
Product Description
Features: l Support HDMI1.4a version l Support 3D video format l Supports the highest resolution up to 1080p / 60Hz l Support TMDS clock of 225Mhz at the highest rate of 2.25G l Support 24/30 / 36bit dark l Support the use of standard AWG26 cable, input transmission distance up to 15 meters, output transmission distance up to 25 meters l Support single signal display, multiple HD output signal sources such as DVD player, A / V receiver, set-top box l .Requires 5V / 1A power adapter l Optical, coaxial output supports 5.1 channels
Applications:
1: Connect the HDMI signal source and the switch input port through four HDMI cables.
2: Connect the display terminal and the switch output port together through an HDMI cable
3: Connect the switch with a 5V / 1A power adapter Channel switching operation: Press and hold the channel Select key for about 8 seconds to switch between 5.1 and 2.1 audio channels. Infrared remote control instructions
1. First remove the insulating plastic film on the rear of the remote control panel.
2. If you want to select any signal source to output from the output port, press 1, 2, 3 directly. For example, if you want to switch the input source of port 2 to the output port, press the number 2 key directly.
3. The up and down keys on the panel are used to cyclically switch the input signal source to the output port. When there is no input source connected to the input port, it will skip automatically.
4. When not using the remote control, for safety, insert an insulating plastic film into the rear of the remote control panel
