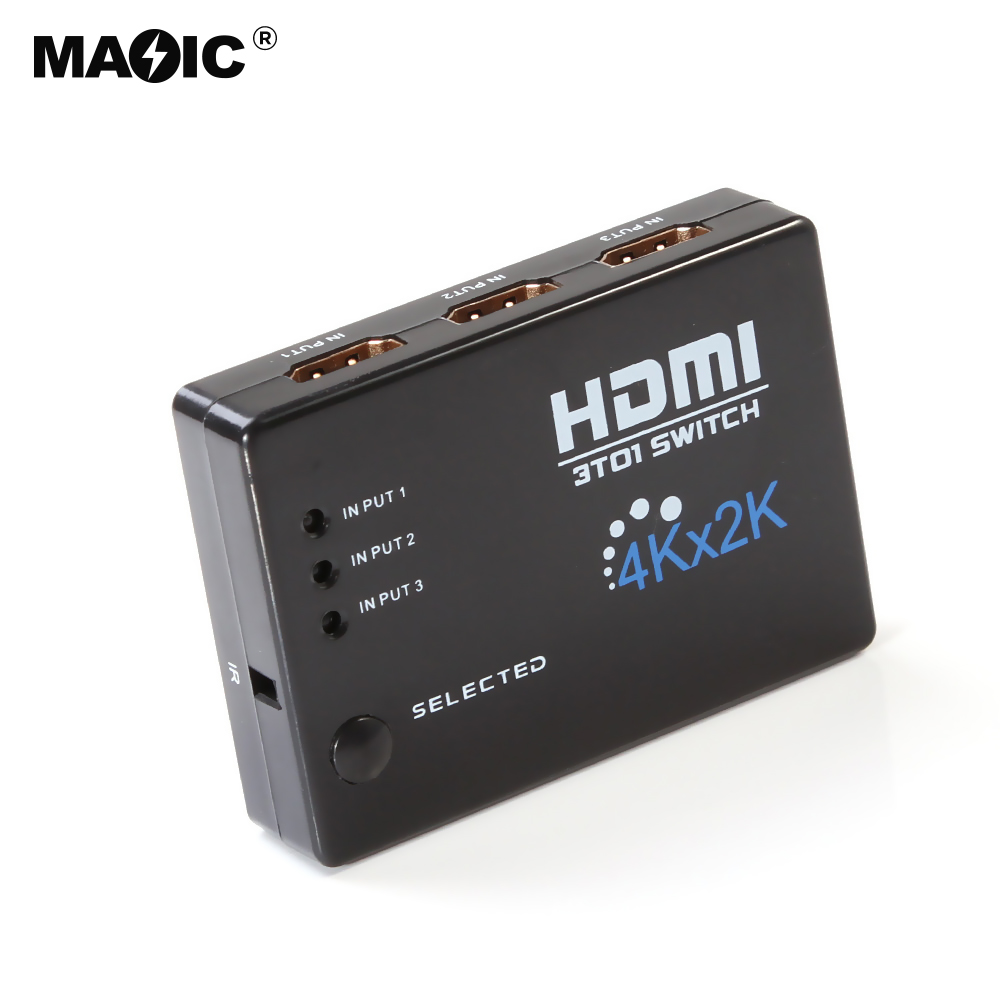

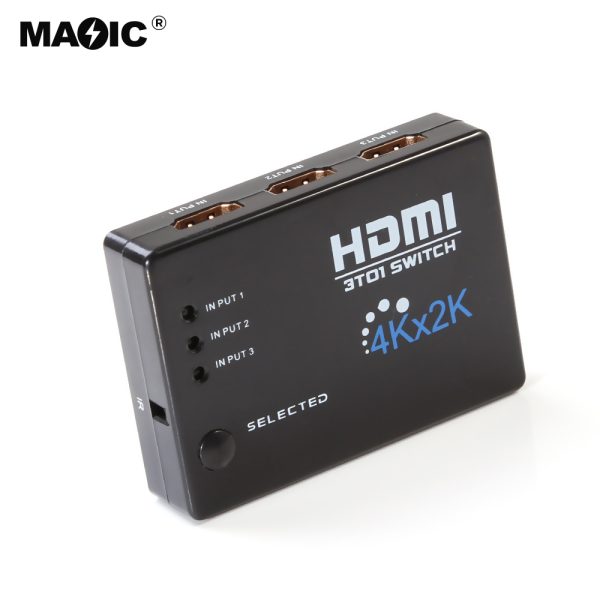

HDMI switch
Features:
HDMI three-in-one-out switch
This product is a high-definition switcher that can switch three different HDMI signal sources to a high-definition device without loss. It supports multiple resolutions and supports up to 1080p.
HDMI is widely used in the home, and there are more and more high-definition devices for HDMI output interfaces, such as DVD players, digital TV set-top boxes, PS3 game consoles, etc., and most current HDMI interfaces for flat-panel or LCD TVs. Still only one. Users can easily switch the contents of the three HDMI interfaces to the TV through the panel buttons, greatly improving the convenience of operation.
3 HDMI inputs, 1 HDMI output. The mini HDMI switch routes 3 high-definition video signals with multi-channel digital audio with a resolution of up to 1080p. The 3 inputs are simultaneously connected to 3 HD video sources, such as satellite system and HD DVD player, SONY PS/3 player. The output sends high-definition audio/video signals to a high-definition display. HDMI products support audio and video signals.
Applications:
1. Compatible performance, support 1080P, suitable for DVD, STB, PS3, PC, DV, DLP Video Projector and other HDMI devices with HDMI interface.
2. Power-saving design, no external power supply required
3. Small size (49mm*50mm*13mm), no place
4. Status indicator, real-time understanding of each port movement.
Three HDMI inputs, one HDMI output
3-in-1 out mini HDMI switcher with built-in powerful automatic recognition switching function.
Based on the rich design experience of HDMI products, this switch is a well-compatible product in the industry. Due to the elimination of external power and remote control,
This switch is a 3*1 HDMI switcher that is easy to use and cost-effective on the market.Details:
Easily switch between any 3 HDMI signals.
Support 480p, 720p, 1080i, 1080p and 1920×1200 resolution
Extend all HDMI devices by reproducing HDMI signals.
Support HD video, high quality, clear, HDTV resolution up to 1080p and computer resolution of 1920×1200
Full support for HDMI1.3.
Compatible with HDCP. Quick installation. easy to use.
Technical specifications:
Video Amplifier Bandwidth: 2.5 Gbps
Input video signal level: 1.2 volts p-p
Input DDC signal level: 5 volts p-p (TTL)
Single connection signal range: 1080p/1920×1200
Product specifications: HDMI 1.3b 1080P
Use models: can be used for HD-DVD, PS3, STB, computer, HD player, etc.
