MT-VIKI 3 port HDMI 3×1 selector support switch via IR

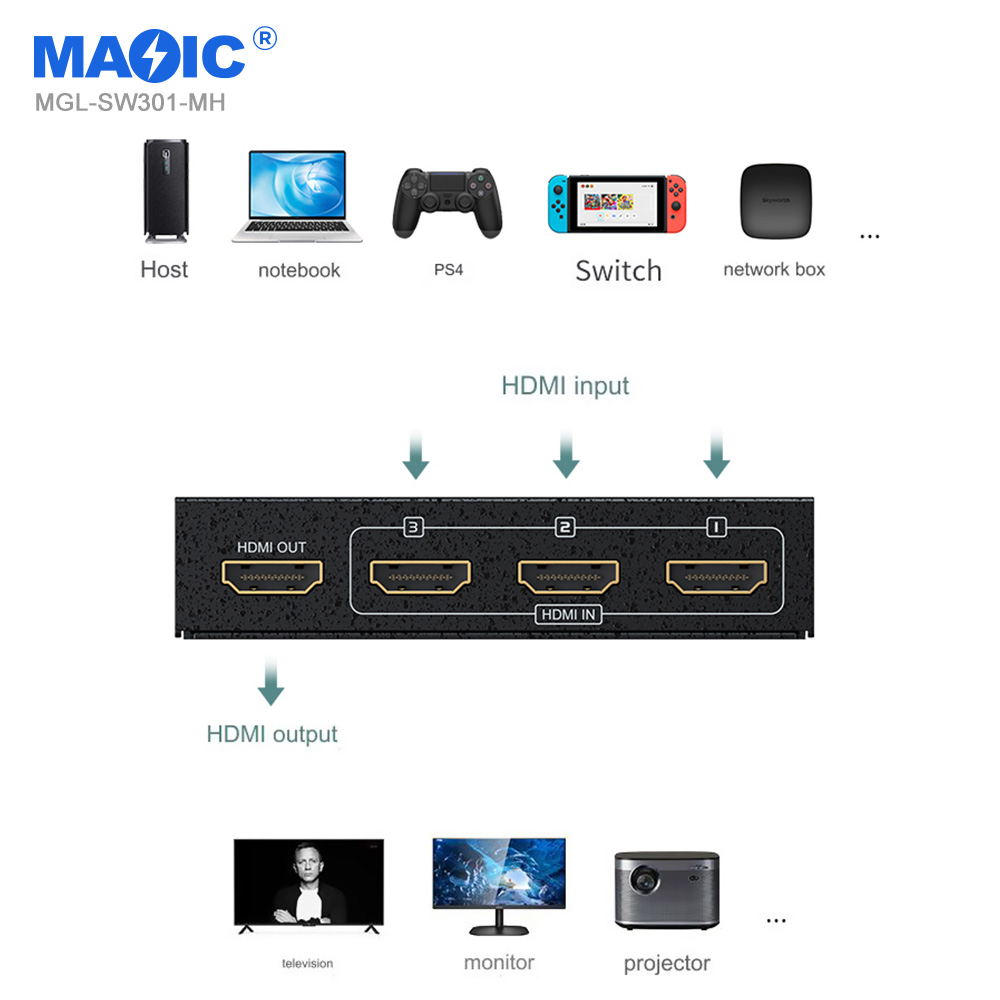

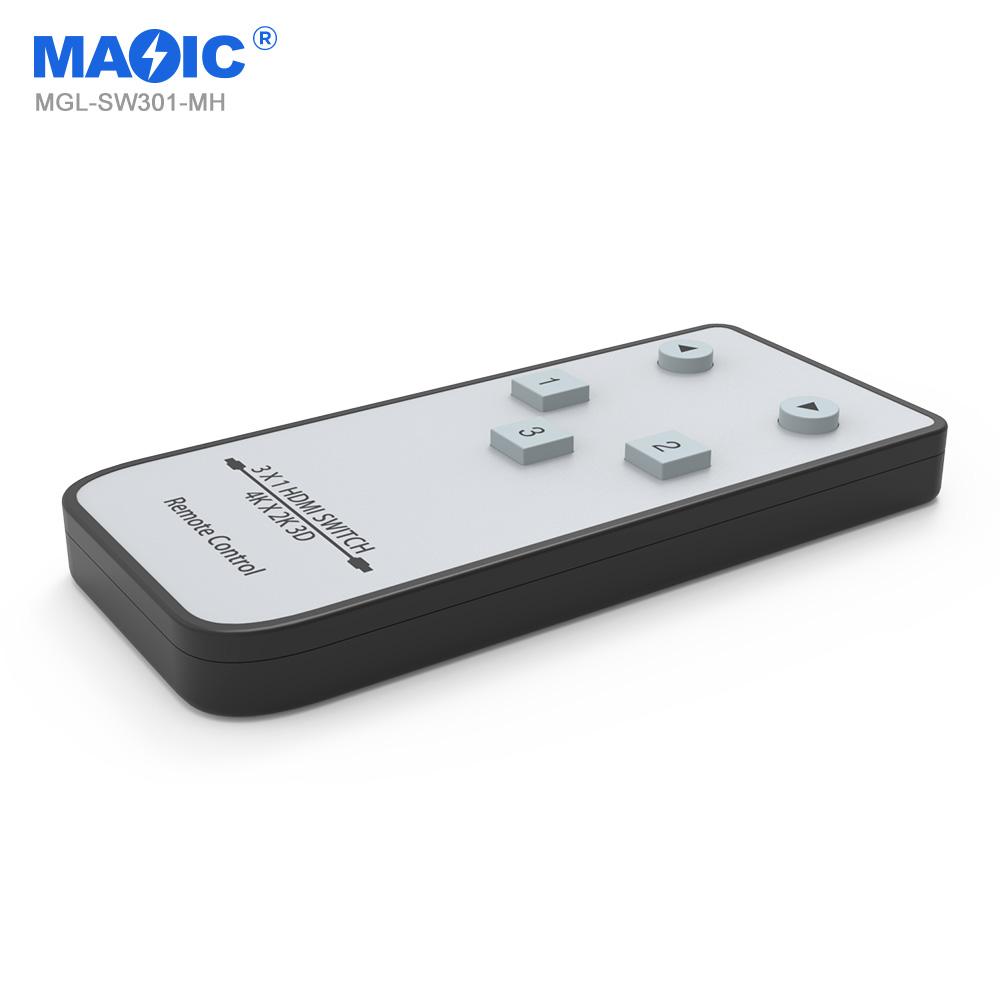

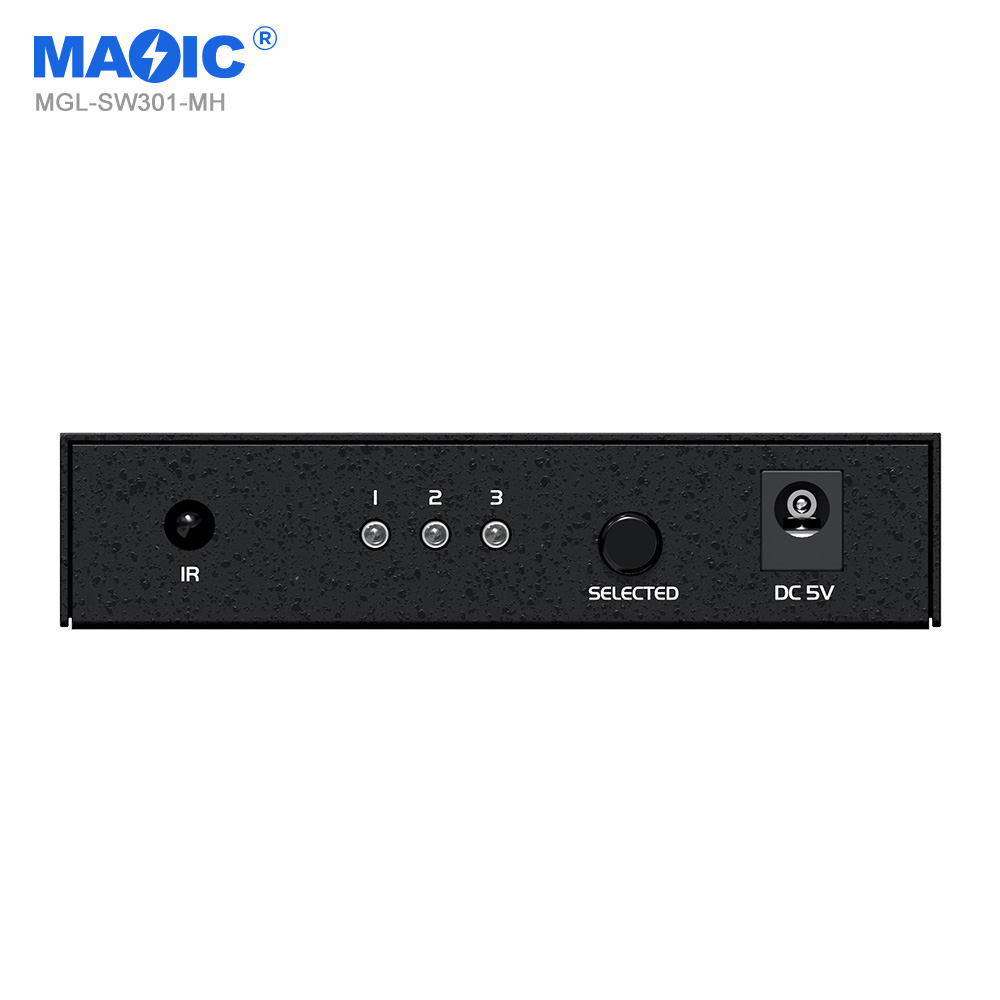

The metal-housing 3 Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.
Specification:
| Video Input | Interface | 3 x HDMI Type A Female | ||||
| Impedance | 100 Ω | |||||
| Video Output | Interface | 1 x HDMI Type A Female | ||||
| Impedance | 100Ω | |||||
| Video | Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | ||||
| Compliance | HDMI (3D, Deep Color) | |||||
| Max. Resolution | Up to 1080p | |||||
| Audio | Input | 3 x HDMI Type A Female | ||||
| Output | 1 x HDMI Type A Female | |||||
| Control | IR | 1 x Mini Stereo Jack Female | ||||
| Power | Connector: 1 x DC Jack | |||||
| Consumption: DC5V | ||||||
| Environment | Operating Temp. | -45- 75°C | ||||
| Storage Temp. | 5%-90% | |||||
| Humidity | 5-90% RH, Non-Condensing | |||||
| Housing | metal | |||||
| Weight | 0.263 kg | |||||
| Dimensions | 10 x 8 x 2.5 cm | |||||
| (L x W x H) | ||||||
| Carton Lot | 40 pcs | |||||
