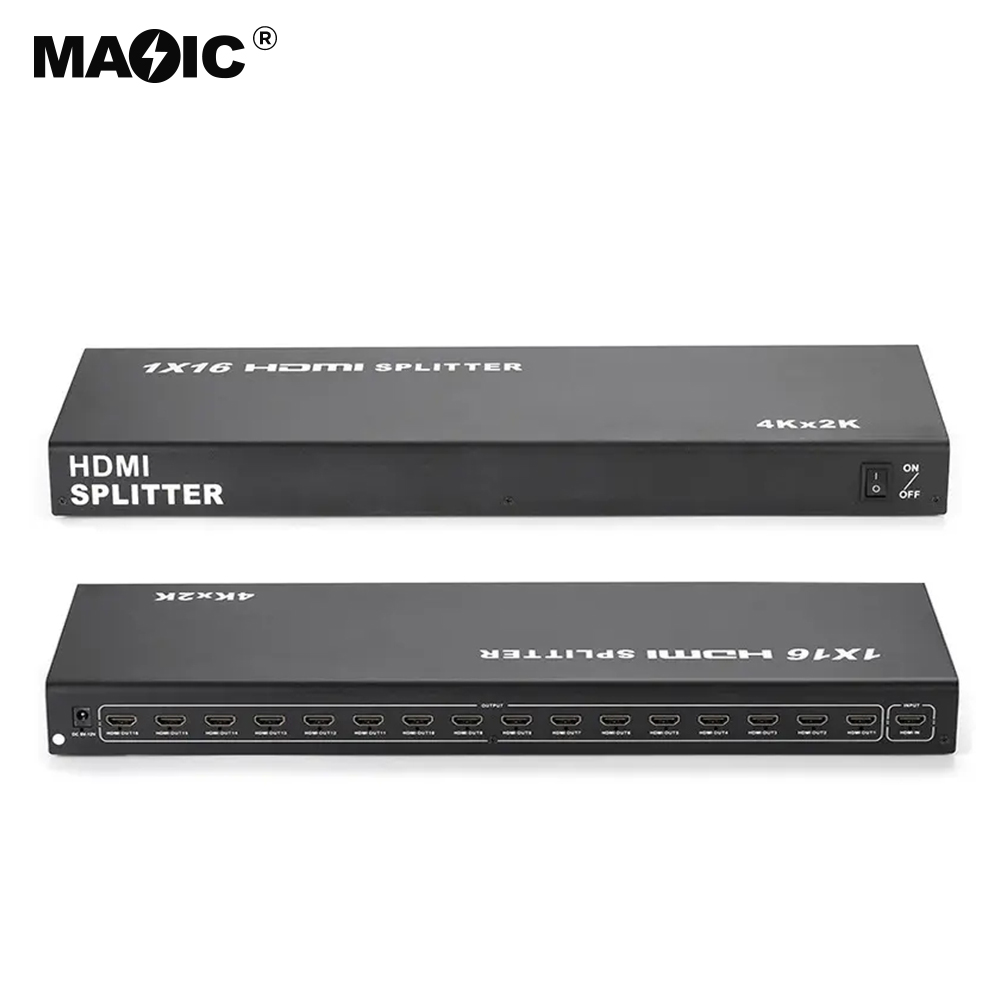

Splitter
Connect and Operate
• Connect the HD source to the Splitter input with one HDMI cable
• Connect the Splitter output to the displays with 16 HDMI cables
• Connect the 12V/3A power adapter to the Splitter
• Reset button: it’s a Reset key for system Reset.
Specification
• Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
• Supports resolution up to 4K x 2K @ 30Hz
• HDCP 1.4 Protocol Compliant
• Compatible with HDMI 1.4/ 1.3/ 1.2/1.1/1.0
• Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD / DTS-HD Master.
• Max bandwidth: 340MHz
• Max baud rate: 3.4Gbps
• Input cable distance: (1080p resolution) ≤10m,(4K resolution)≤5m AWG26 HDMI standard cable
• Output cable distance: (1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable
• Full Shield and Gold Plated Connectors for Better Image / Sound Quality/ Stable signal transmission and more durability.
Attention
• Do not expose to liquids, fire, or explosive substances.
• Do not expose to extreme temperatures.
• Do not disassemble.
• Unplug during lightning storms or when unused for an extended period of time.
• Children should be supervised to ensure they do not play with the appliance.
