HDMI®-EXTENDER-150M-KVM

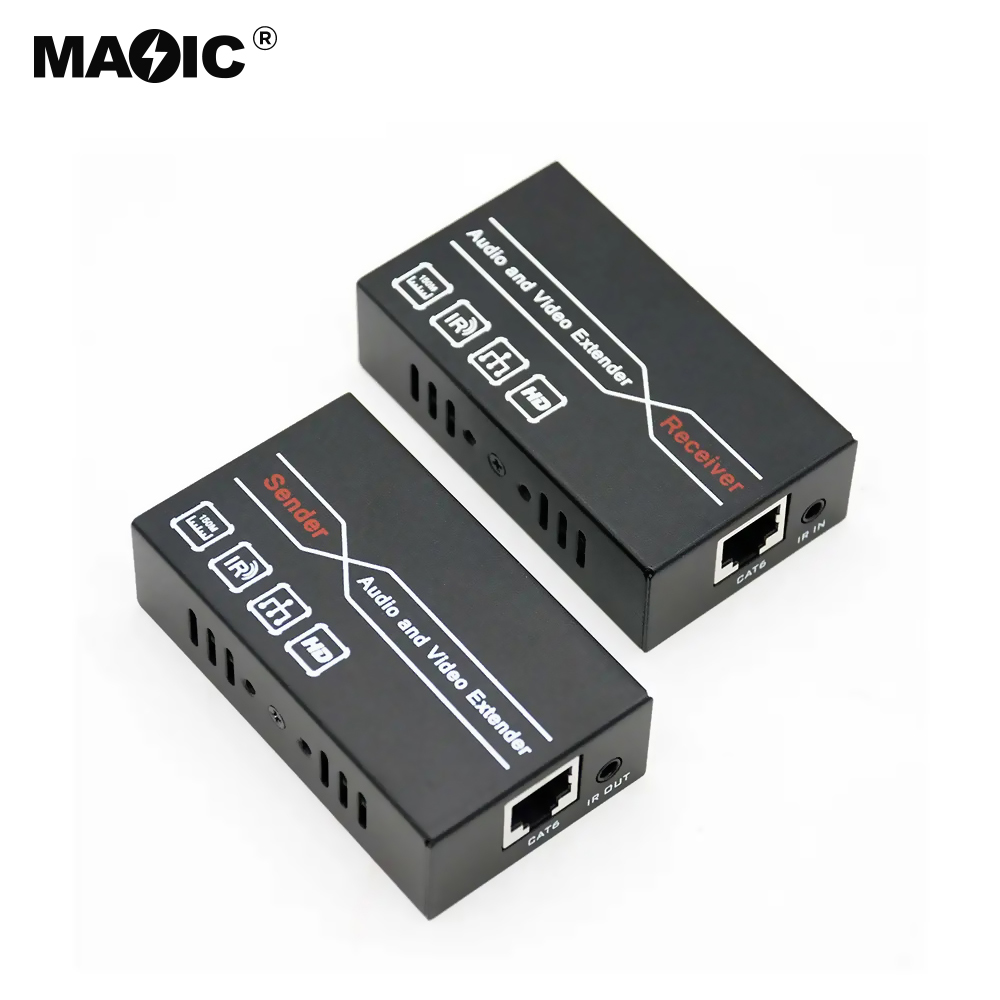

Xput High Quality 500FT/150M HDMI IP Extender Over IP Cat5e/6 To Lan 150M Full-HD 1080P with Transmitter and Receiver

Category:

1. Product Description

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 150meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc. The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

2. Main Features

Compact size and Slim design, strong anti-interference ; easy installation.
Distance up to 150m over UTP CAT5E/6 cable.
Video resolution max up to 1920*1080@60Hz.
Support 1 to many receivers transmit(253pcs RX over Ethernet switch) .
Support IR(38khz) signal pass back control .
Support HDMI 1.3 and HDCP 1.2 standard.
High compatibility, can auto-match source and display device.
Built-in automatic adjustment system, make the image smooth, clear and stable.
Built-in ESD protection system; Simple to install, plug and play.
TCP/IP Ethernet communication.
Real-Time Video/Audio Transmission over IP.
Pure Ethernet , Simple Cabling .
Application Fields : 1 : N Solution (Shop, restaurant, kiosk, classrooms,Monitor, Speaker,
Energy Saving , virtual desktop , Digital Camera ,TCP/IP Network ).
Ordinary 100M or 1000M Ethernet switch.
3. Specification Video Standards: HDMI 1.3; HDCP 1.2 Maximum pixel clock:165MHz Maximum data rate:6.75Gbps Resolution:Max: 1920X1080@60Hz Connector:HDMI-A Impedance:100Ω IR Interface:3.5mm earphone seat Signal direction:Unidirectional Signal type:Digital IR frequency:38kHz(Other Choice20-60kHz) Ethernet Interface:RJ45(568B) Transmission distance:UTP CAT6—150m Other Power supply:The power adapter: DC 5V Power dissipation:MAX 4W Temperature:Operating: -5℃ ~ +70℃ Humidity:Operating: 5% ~ 90% Dimension:79*43*23mm

4. Installation Steps

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3.Connect the HDMI output port of receiver to the display device with HDMI cable,
4.Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.
5, IR function—connect the IR TX (the bigger) cable to the HDMI receiver, connect IR RX cable to the HDMI transmitter and the IR TX must face to the controlled device.

5.Packing List

The Package contents :(for 1 TX and 1 RX)

1. 150M IP Transmitter x 1
2. 150M IP Receiver x 1
3. 5V Power adapter x 2
4. IR cable x 1 Pair
5. User’s Manual x 1
