EXTENDER
Description:

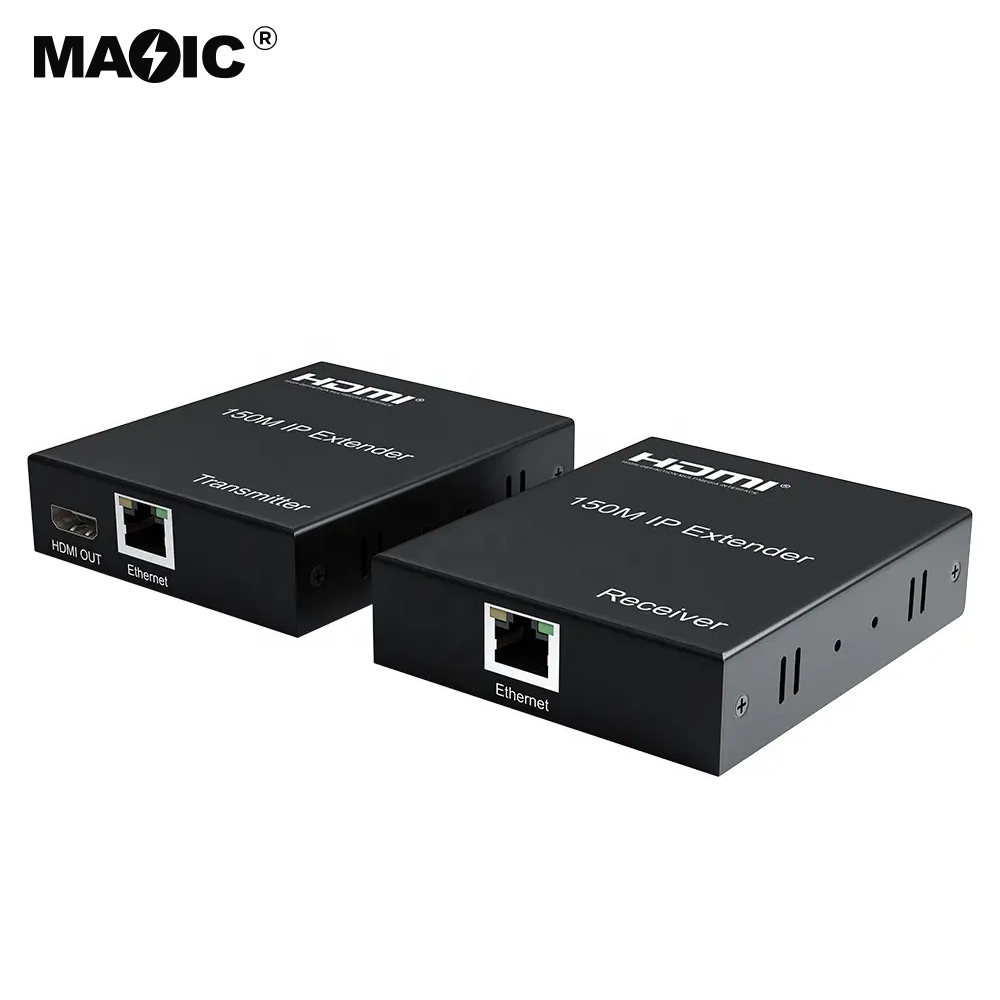

HDMI signal amplifier extender expands the distance of 1080P 4K HD video up to 150 meters by using two unshielded twisted pairs. It not only breaks through the limitation of HDMI wire, but also adopts Cat5/6 wire which is more convenient and adaptable in wire structure and cheaper in cost. It is a better way for you to expand HDMI signal. Good choice.
Features:
l Support HDMI 1.4a
l Support 3D
l Support highest video resolution 1080p/60Hz
l Support 1.5Gbps data rate and tmds clock up to 148.5MHz
l Support 8 bit deep color
l Need DC5V/1A power supply
[Applicable Equipment] For all devices with HDMI interfaces
[How to Connect]
A. Connect the signal source with the transmitter end of the extender with a HDMI cable, which is 15 meters long.
B. Connect the signal end with the receiving end of the extender with a HDMI cable, which is 15 meters long.
C. Use a CAT5e or CAT6 line (recommended) instead of HDMI line to connect the transmitter and receiver of the extender to transmit 60 meters.
D. When using, the transmitter and receiver should be plugged in with external power supply.
[Product characteristics]
1. Supporting video input and output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i;
2. Supporting audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
3. The transmitter and receiver are used in pairs without setting.
4. Signal transmission: A CAT5e or CAT6 line (recommended) is used instead of HDMI line to connect the RJ45 port of the receiver and transmitter to transmit 60 meters.
5. LED display lamp: When the power supply or the extender works, the relevant LED lamp will turn on;
6. Using AWG26 cable and following the standard of IEEE-568B, the signal transmission can reach 60 meters.
7. External power supply: DC5V/2A power adapter (Note: default Euro/US regulations, random delivery without notes);
8. Installation is fast, operation is simple, plug and play.
[Packaging List]
One HDMI signal TX transmitter, one HDMI signal RX receiver, two DC5V power adapters, one instruction and one color box packaging
