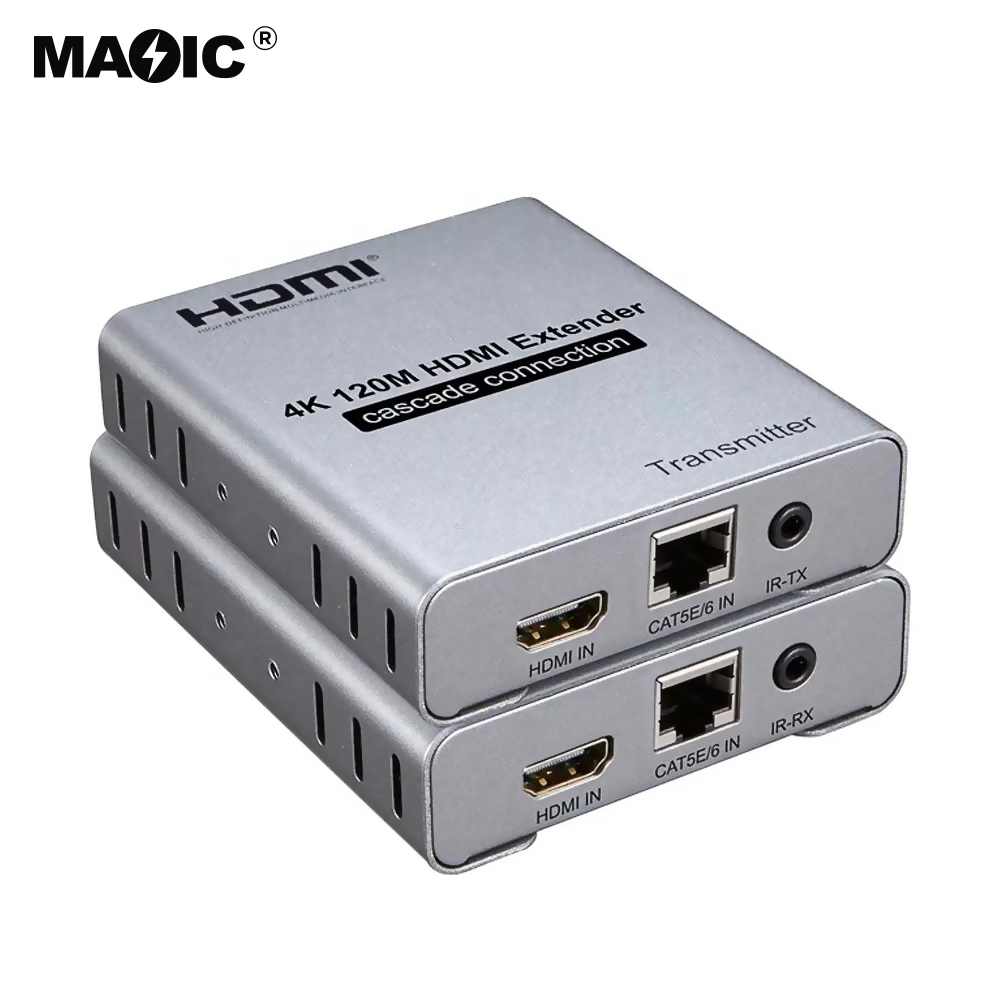

HDMI Extender Over CAT5e/6 RJ45 Ethernet LAN Network Cable Transmitter Receiver HDMI Extender 4k 120m
Introduction
The 4k 120m hdmi extender uses one single cat5e or cat6 cable instead of hdmi cable. you can extend the 4k singal to 120m. The purpose of the extender is to achieve long-distance singal transmission with low-cost wire.
Specifications
Length of cat5e or cat6 cable between RX and TX: up to 120m
HDMI input: 4k/1080p/720p/576p/576i/480p/480i
HDMI output: 4k/1080p/720p/576p/576i/480p/480i
Support audio format: DTS/Dolby/LPCM
MAX bandwidth: 340MHz
MAX baud rate: 3.4Gbpsx3
Input video singal: 0.5-1.5Volts p-p
Output DDC singal: 5Volts p-p(TTL)
Input hdmi cable distance: ≤15m AWG26 hdmi standard cable
Output hdmi cable distance: ≤15m AWG26 hdmi standard cable
TX Max working current: 210mA
RX Max working current: 100mA
Power adapter format: Input: AC(50HZ,60HZ) 100V-240V; Output: DC5V/1A
Size: 94*84*24mm
TX weight: 223g
RX weight: 223g
