EXTENDER
Product Introduction:

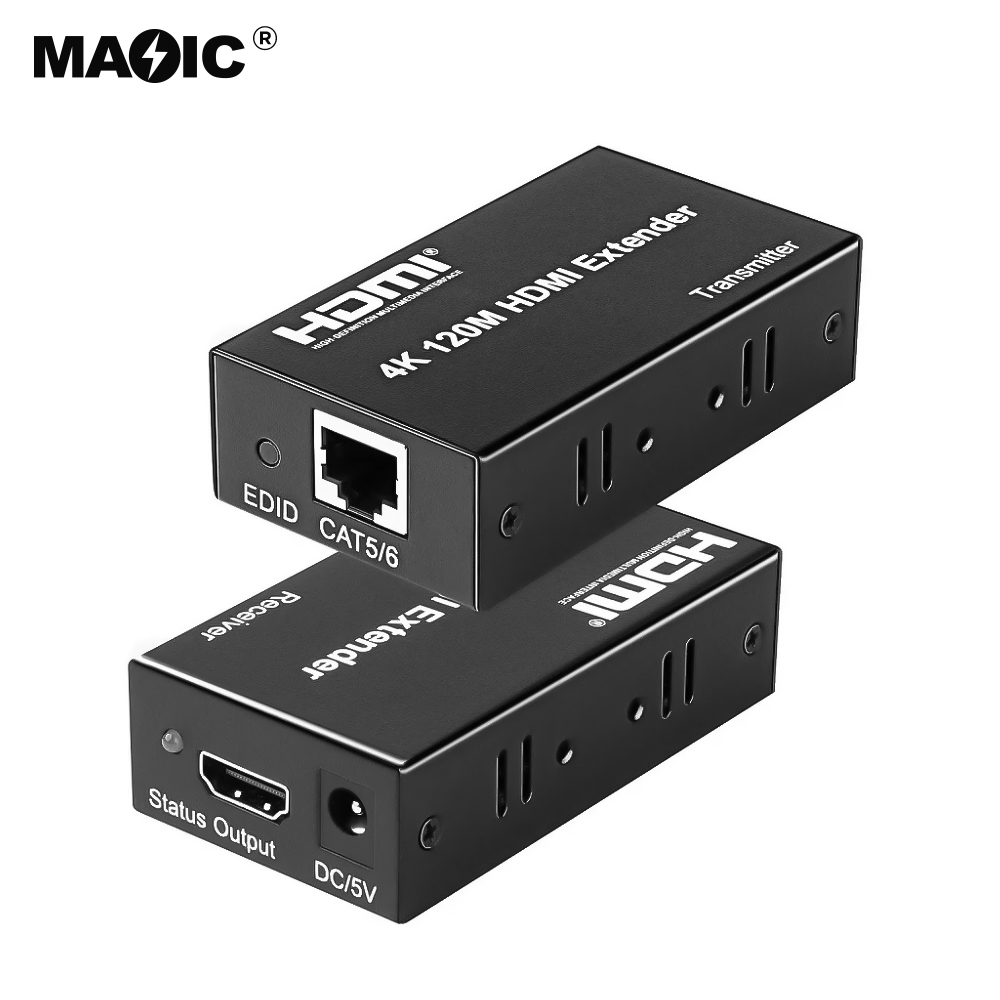

This 4K HDMI Extender uses single cat5e or cat6( cat6 is recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, cutting down the cost. The Extender is designed tosupply for long distance transmission of high definition signal.
Product Features:
1. Support HDMI 1.4b. 2. 120M long distance transmission 3. Low power consumption, low temperature and high safety.
* Length of CAT5e/CAT6 cable between Rx and TX ………………………………….. 120 meters
* HDMI Input ………………………………………………….. up to 4K 30Hz
* HDMI Output …………………………………………………. up to 4K 30Hz
* Max bandwidth ………………………………………………………………………….. 340MHz
* Max baud rate …………………………………………………………………………. 3×3.4Gbps
* Input video signal ……………………………………………………………….. 0.5~1.5Volts p-p
* Output DDC signal ……………………………………………………………….. 5Volts p-p (TTL)
* Input HDMI cable distance ………………………………. ≤10m AWG26 HDMI standard cable
* Output HDMI cable distance ………………………………… ≤10m AWG26 HDMI standard cable
* Power adapter format ……………… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
* HDMI Input ………………………………………………….. up to 4K 30Hz
* HDMI Output …………………………………………………. up to 4K 30Hz
* Max bandwidth ………………………………………………………………………….. 340MHz
* Max baud rate …………………………………………………………………………. 3×3.4Gbps
* Input video signal ……………………………………………………………….. 0.5~1.5Volts p-p
* Output DDC signal ……………………………………………………………….. 5Volts p-p (TTL)
* Input HDMI cable distance ………………………………. ≤10m AWG26 HDMI standard cable
* Output HDMI cable distance ………………………………… ≤10m AWG26 HDMI standard cable
* Power adapter format ……………… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
