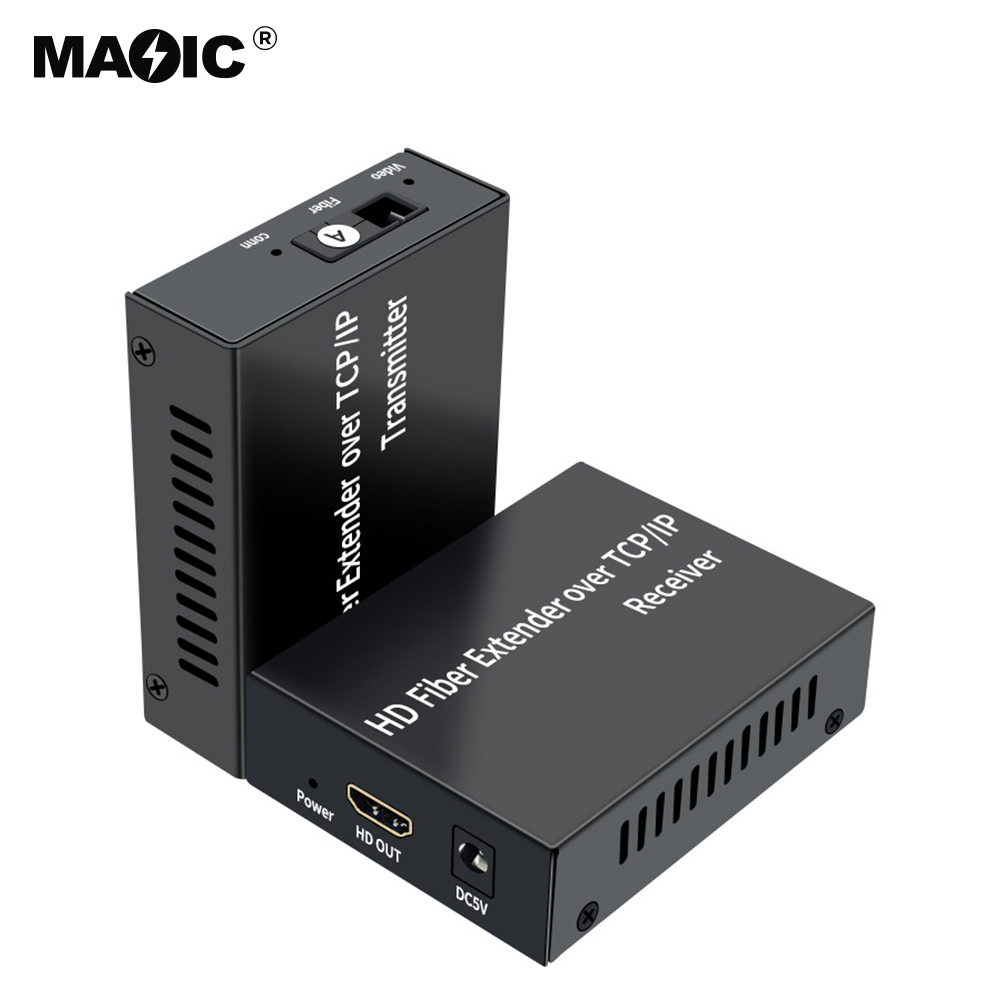

EXTENDER
3. FEATURES
This Extender has many features that enable it to perform in superior manner, among those features and you will find:
- One pair as a full functional module, no need of setting.
- Fiber cable can substitute HDMI cable to achieve long distance transmission.
- HF03 or HF20 video resolution can be up to 1920*1080P@60Hz.
- Compact size
- Signaling rates up to 1.65bps in support of 1920*1080P@60Hz display.
- Support 1 Sender to multi receiver via fiber Ethernet switch.
- HDCP compliant
- Support uncompressed audio such as LPCM
- Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby true HD)
4. PARAMETERS LIST
Input video signal —————- 0.5-1.0 volts p-p
Input DDC signal—————-5volts p-p(ttl)
Maximum single link range—————-1920*1080, 1080p
Output video—————-HDMI
DTV/HDTV—————-1080p/1080i/720p/576p/480p/576i/480i
HF03—————-3KM
HF20—————-20KM
Interlaced(50&60hz)—————-480i 576i 1080i
Progressive(50&60hz)—————-480p,576p,720p,1080p
Power consumption—————-5wattd(max)
Operating temperature—————-0 to+70℃
Operating humidity—————-10%to85%RH(no condensation)
Storage temperature—————–10℃to+80℃
Storage humidity—————-5%to95%RH(no condensation)
External power supply—————-DC5V @1A
