Extender
Introduction

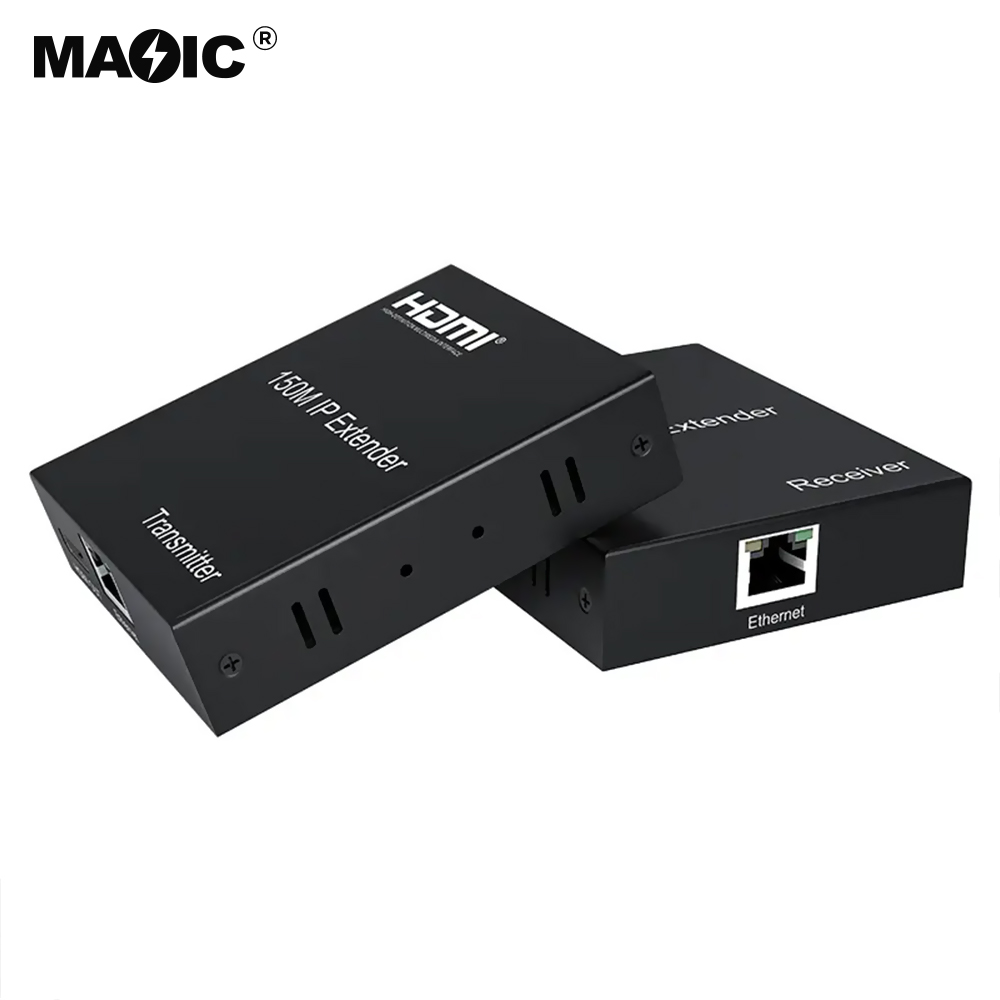

150M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 150 meters away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to -multipoint mode and cascade connection mode .
150M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 150 meters away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to -multipoint mode and cascade connection mode .
Features
* Support HDCP1.4
* Decoding Mode MJPEG
* Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode
and cascade connection mode；
* 802.3 Ethernet standard；
* The design of pure hardware, plug and play, no need for additional software.
* Support HDCP1.4
* Decoding Mode MJPEG
* Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode
and cascade connection mode；
* 802.3 Ethernet standard；
* The design of pure hardware, plug and play, no need for additional software.
Specifications
Resolutions ………………………………………………………………………….. 480P/720P/1080P
Audio …………………………………………………….. Sample rate:32kHz,44.1kHz and 48kHz
Power adapter format ……….…. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current ..……………………………………… TX 500mA，RX 500mA
Size(L-W-H) …………………………………………………………………………………. 93*79*21mm
Weight ………………………………………………………………………………………………. 228g x 2
Operating Temperature/Humidity …………….. 0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity ……………… -10℃-70℃/5%-90%RH(no condensation)
Resolutions ………………………………………………………………………….. 480P/720P/1080P
Audio …………………………………………………….. Sample rate:32kHz,44.1kHz and 48kHz
Power adapter format ……….…. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current ..……………………………………… TX 500mA，RX 500mA
Size(L-W-H) …………………………………………………………………………………. 93*79*21mm
Weight ………………………………………………………………………………………………. 228g x 2
Operating Temperature/Humidity …………….. 0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity ……………… -10℃-70℃/5%-90%RH(no condensation)
Connection and operation
1) Connect the HDMI source (such as DVD, PS3, STB ) to the “HDMI IN” of transmitter by HDMI cable.
2) Connect the “HDMI out” of Receiver to HDTV display by HDMI cable.
3) Connect the Transmitter and Receiver with one cat5e/6 cable (recommend).the furthest distance is 150M.
4) Connect the “IR receiver “into “IR-RX” port on receiver, and “IR transmitter ” into the “IR-TX” on transmitter, and make sure the IR transmitter aim at IR port of the source
5) Connect two pieces of 5V power supply to the transmitter and receiver, and power on the HDTV display and HDMI source.
2) Connect the “HDMI out” of Receiver to HDTV display by HDMI cable.
3) Connect the Transmitter and Receiver with one cat5e/6 cable (recommend).the furthest distance is 150M.
4) Connect the “IR receiver “into “IR-RX” port on receiver, and “IR transmitter ” into the “IR-TX” on transmitter, and make sure the IR transmitter aim at IR port of the source
5) Connect two pieces of 5V power supply to the transmitter and receiver, and power on the HDTV display and HDMI source.
