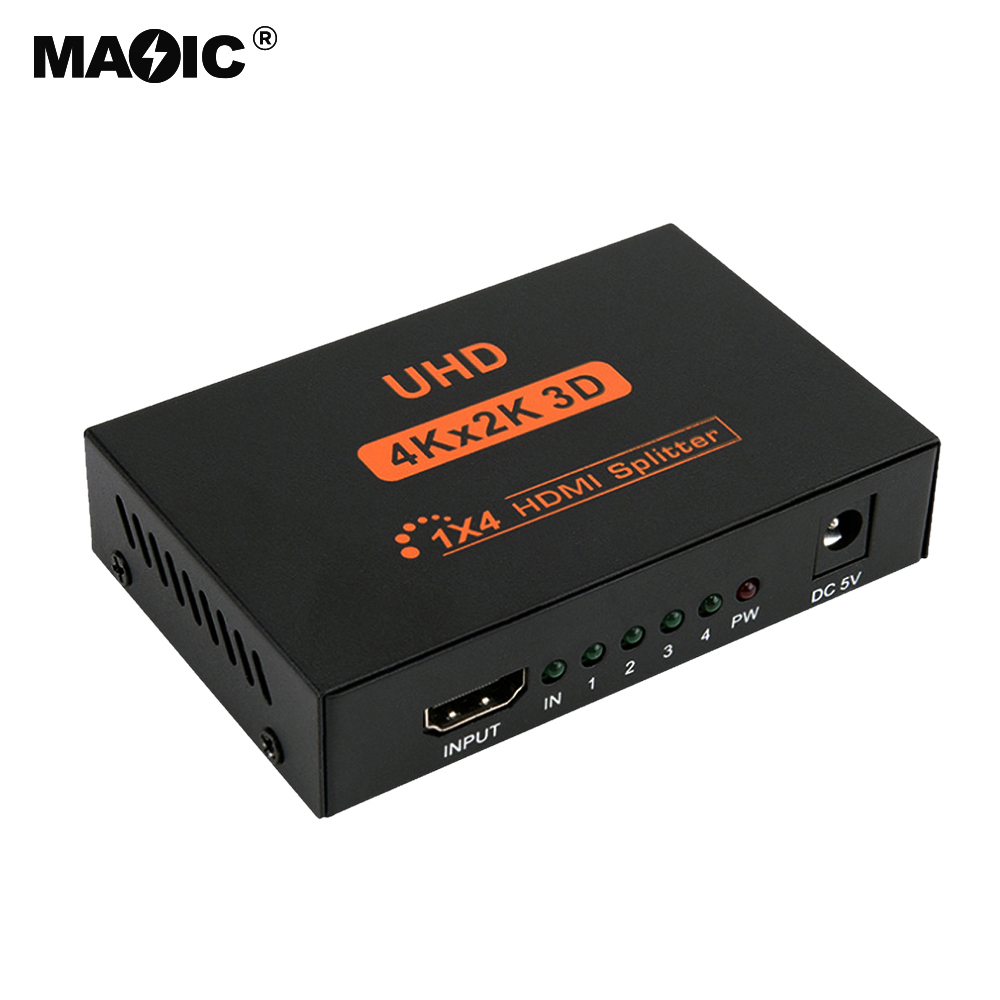

Splitter
Features: l One HDMI signal input is divided into four HDMI outputs l Compatible with HDCP1.2 l Support CEC l Support 30 / 36-bit deep color, support 3D l Support Blu-ray DVD24 / 50 / 60fs / HD-DVD / xvYCC l Audio format DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / DOLBY-AC3 / DSD l Support signal timing rearrangement. l Use AWG26 HDMI 1.4 standard cable, input transmission distance up to 15 meters, output transmission The distance can be up to 20 meters. l No signal loss Easy installation Requires DC5V 1A power supply Connect and operate Connect a high-definition signal source to the input of the distributor via an HDMI cable. Connect the output of the splitter to the display via the HDMI cable. Connect the 5V power supply to the distributor. Applications: 1x4HDMI splitter can connect one HD signal source to four HD display terminals. It can easily distribute HD signals from one HD signal source to four monitors or projectors that support HD signals. In addition, when it is connected to the signal output end of an HDMI cable, the HDMI signal can be amplified. The equipment produced by the company provides solutions for applications such as places with restricted noise, transmission distance and safety, data center control, information distribution, conference room demonstrations, teaching environments and company training venues. Details: HDMI version ………………………………………… HDMI1.4 HDCP version ………………………………………… HDCP1.2 HDMI resolution … …… ….. 24/50 / 60fs / 1080P / 1080i / 720p / 576p / 576i / 480P / 480i Support audio color format … …………………… 24 bit / dark 30 bit / 36 bit Support audio format … DTS / HD / Dolby …- tureHD / LPCM7.1 / DTS / Dolby-AC3 / DSD Maximum transmission rate …….. ………… 10.2Gbps Input and output TMDS signals … ………… 0.5-1.5Vp-p (TTL) Input and output DDC signal ……………… 5Vp-p (TTL) Input cable length ……… ……………………… ≤15m HDMI AWG26 Output cable length ……… ………………….. ≤20m AWG26 HDMI 1.3 standard cable Maximum working current ……………………600mA Power adapter specifications: …………… AC input (50 / 60HZ): 100V-240V, DC output: 5V / 2A Working temperature …………………………..(-15 to + 55 ℃) Operating humidity range ……………………5 to 90% RH (non-condensing)
